（BOPS/PET/PS/PVC）

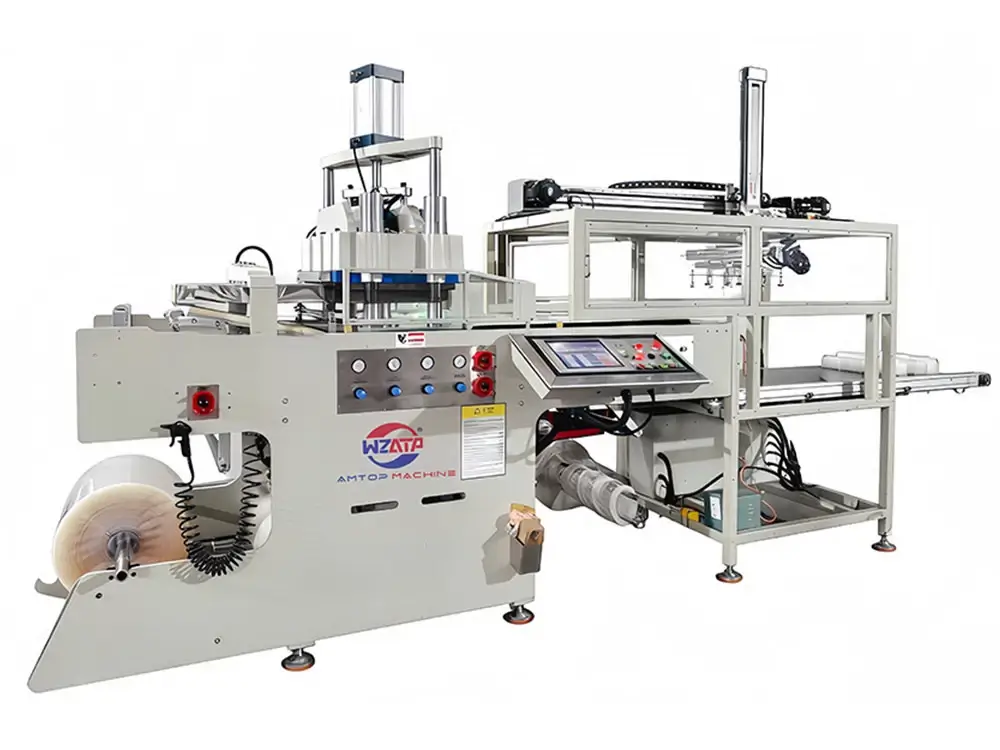

HY-51/62 plastic thermoforming machine is with in-mold-cut system (heating-forming-cutting in one station) for the production of plastic food package. With a material utilization rate of up to 93% and low energy consumption of just 8 kW/h, this roll-fed single-station thermoforming machine helps significantly reduce production costs and enhance your market competitiveness.

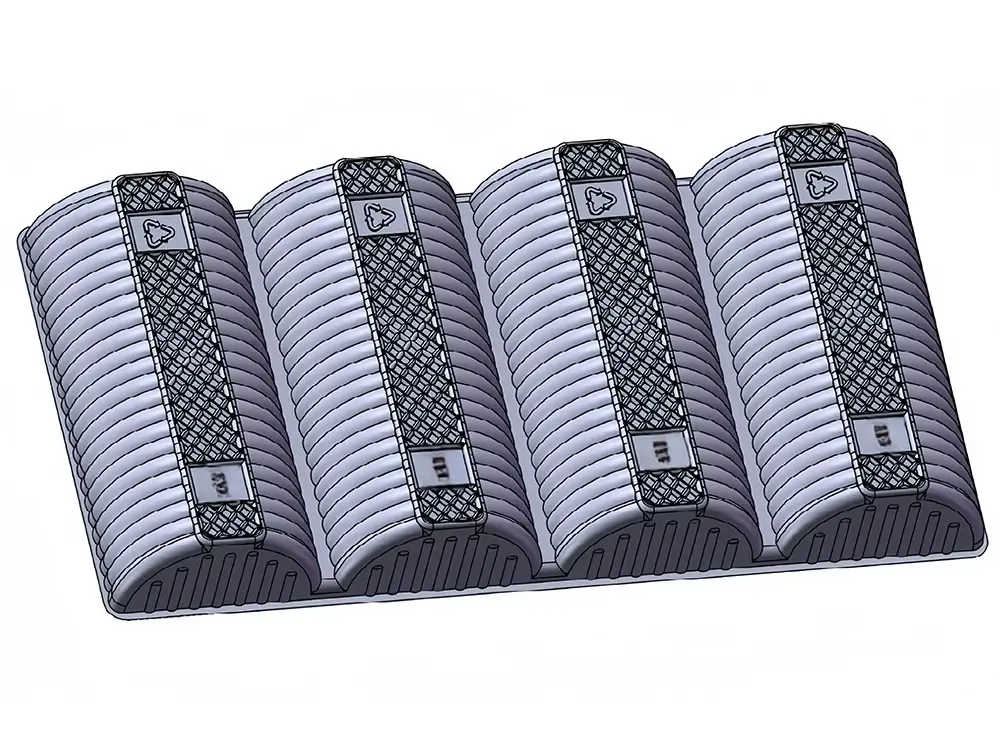

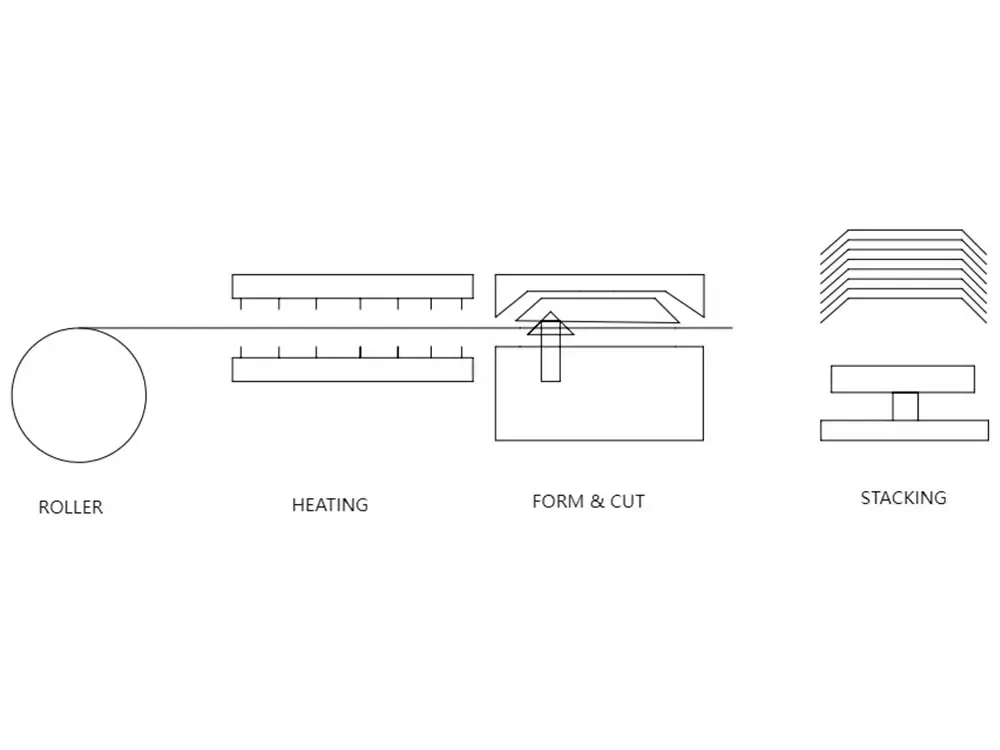

The plastic thermoforming machine efficiently processes BOPS, PET, HIPS, PS and PVC roll sheets into various disposable packaging products, including cookie trays, lids like paper bowl lids, lunch box lids, plastic cup lids, bakery tray and other containers. It integrates feeding, heating, forming, cutting, and stacking into one seamless operation, delivering high productivity and consistent quality.
| Machine model | HY-51/62 | |
| Forming area | 510×620mm | |
| Forming depth | 100mm | |
| Sheet thickness range | 0.10-1mm | |
| Suitable material | BOPS/PET/HIPS/PVC | |
| Knife length | PET:6800mm, /OPS:10000mm | |
| Sheet roller diameter | 710mm | |
| Air pressure | 0.7Mpa | |
| Water consumption | 5 Liters/min(15-20℃) | |
| Air consumption | 1500 Liters/min | |
| Production Speed | 600-1200 recycles/hr. | |
| Total heating power | 24kw | |
| Total motor power | 8kw | |
| Approximate power consumption | 7.5kw/hr | |
| Voltage | AC380V±15V,50HZ | |
| Weight | 3500kg | |
Dimensions (L ×W×H) | Machine | 2950×1550×2350mm |
| Stacker | 2670×960×2350 mm | |

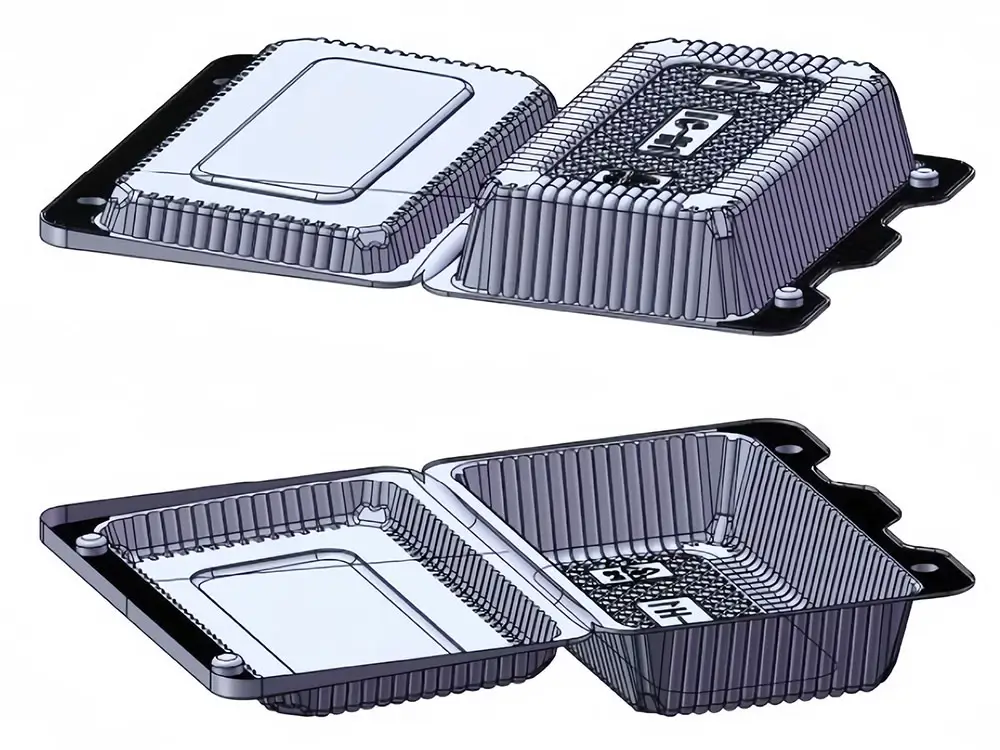

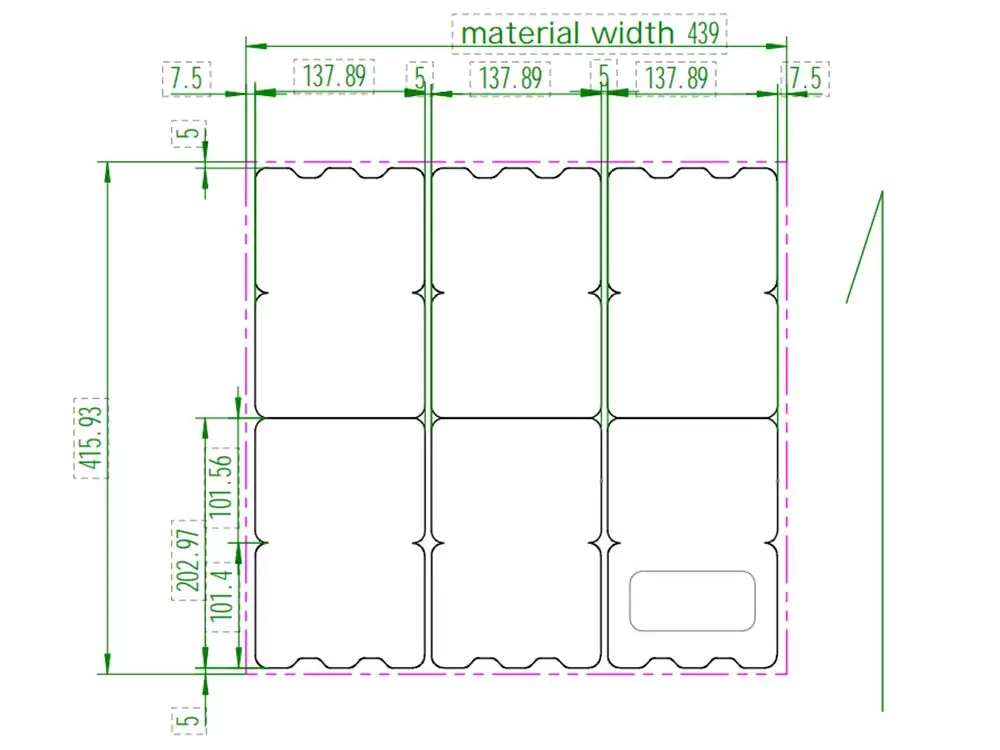

Clamshell box: 203x138x27mm
Mold layout: 6 cavities/mold, 5mm gap between cavities
Material utilization ratio: 92%
Recommended material width: 439mm

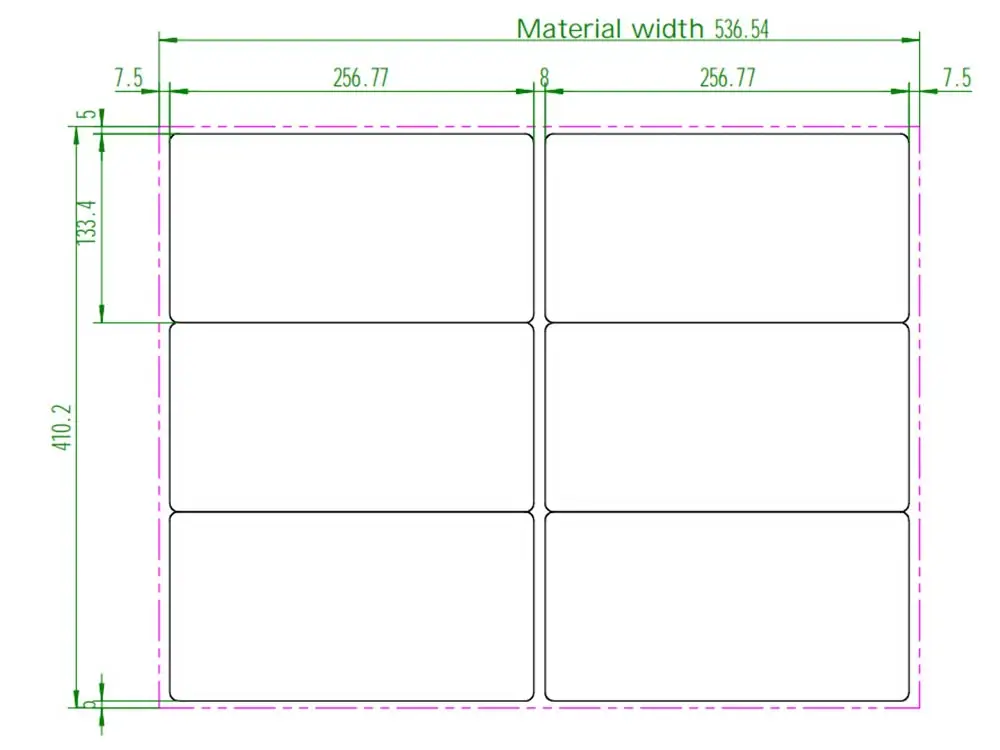

Clamshell box: 257x134x30mm
Mold layout: 6 cavities/mold, 5mm gap between cavities
Material utilization ratio: 93.3%
Recommended material width: 537mm

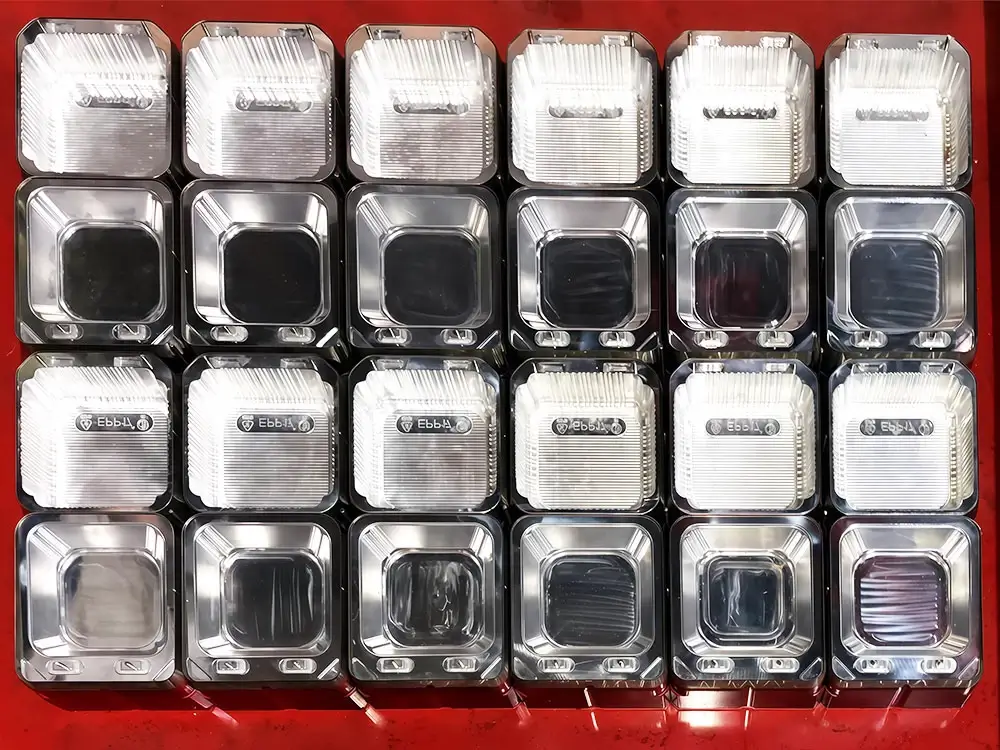

Mold For Clamshell

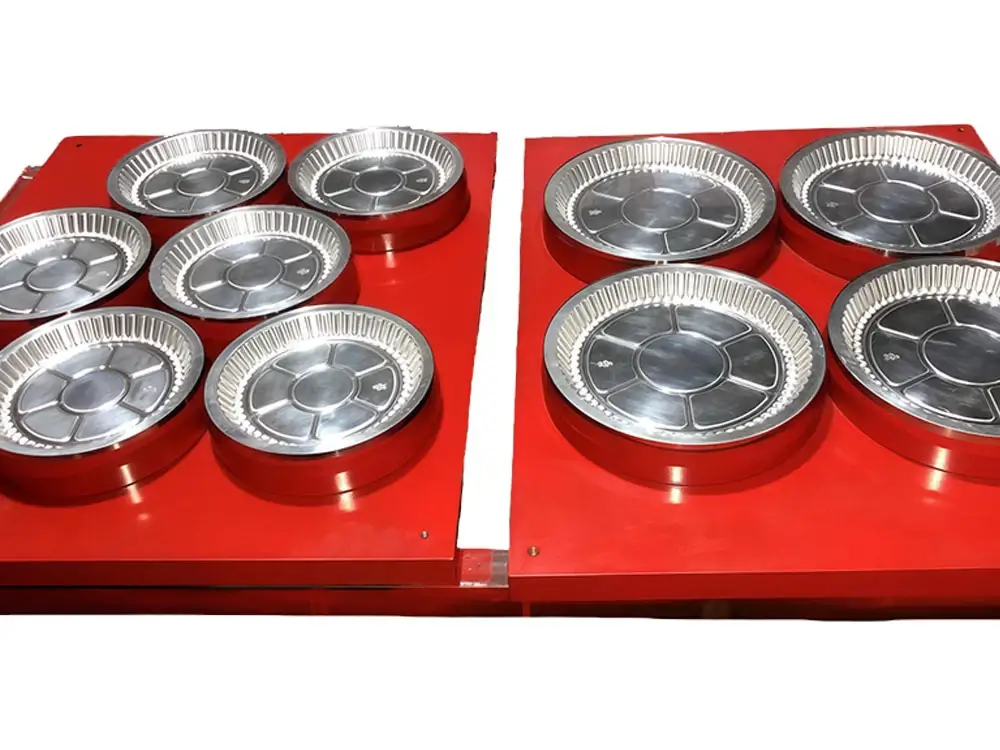

Mold For Round Lids

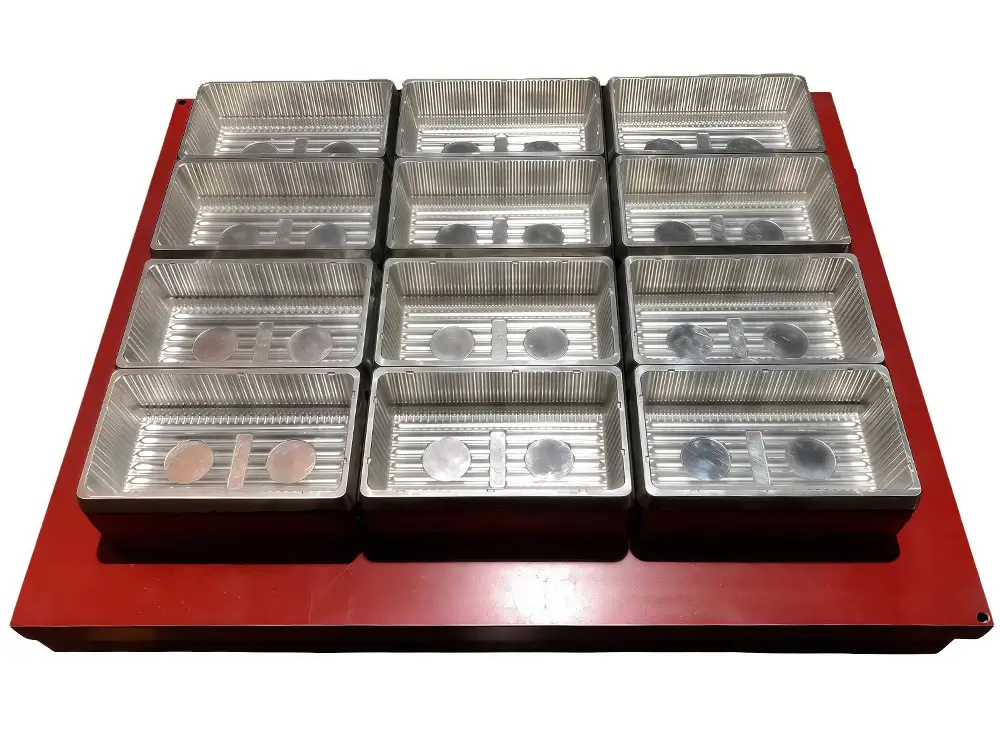

Mold For Tray

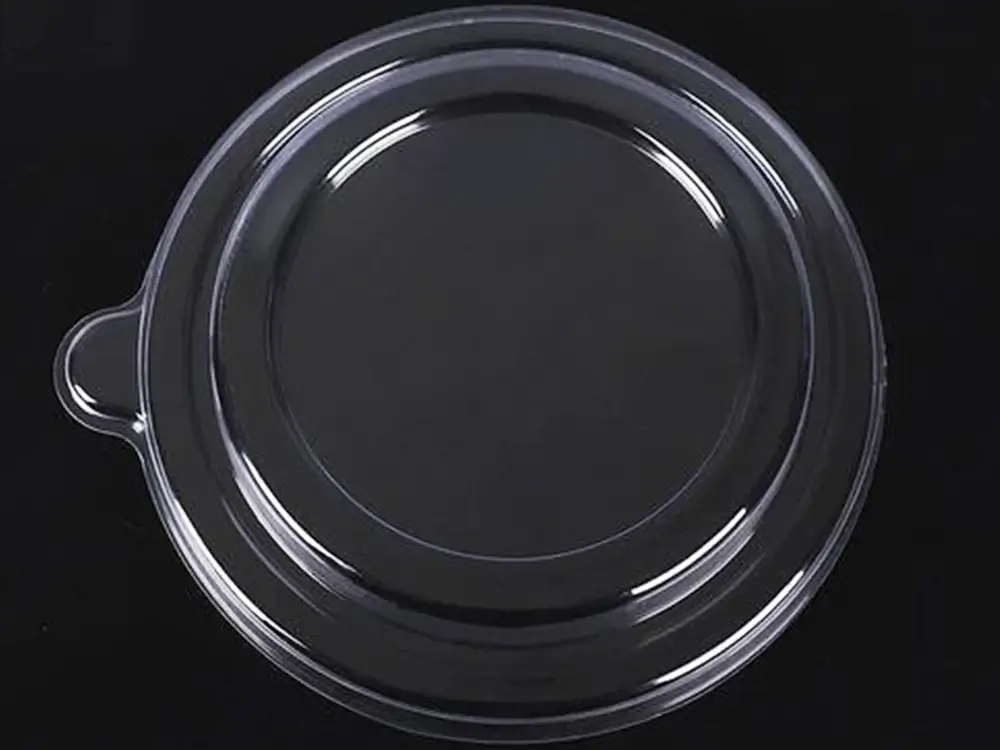

BOPS

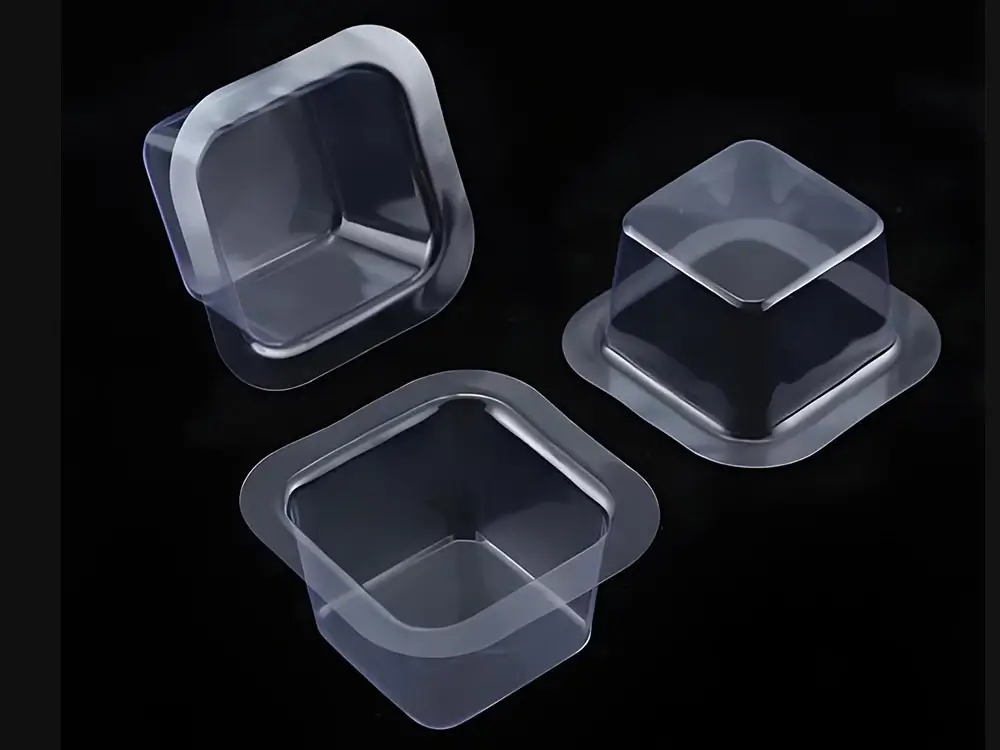

PET

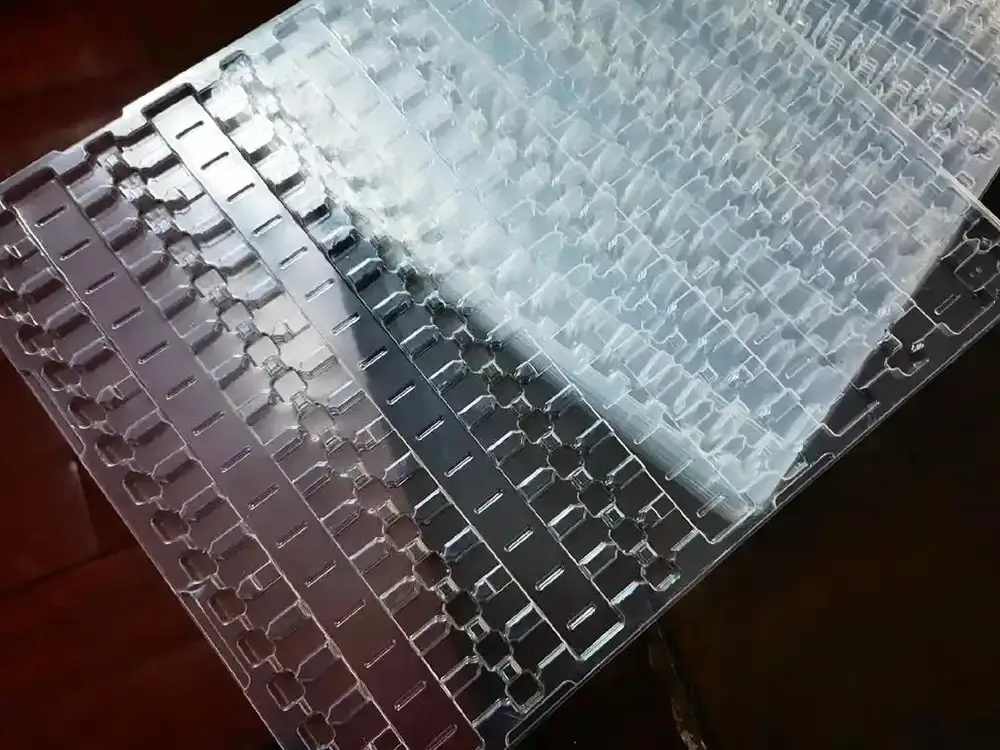

PS

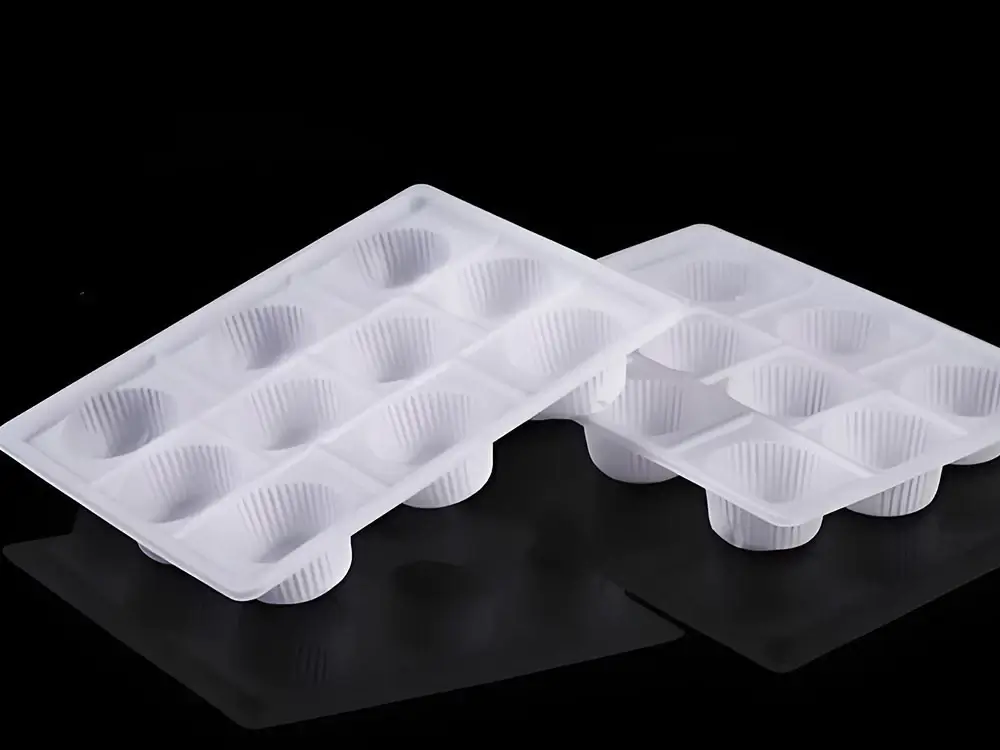

PVC

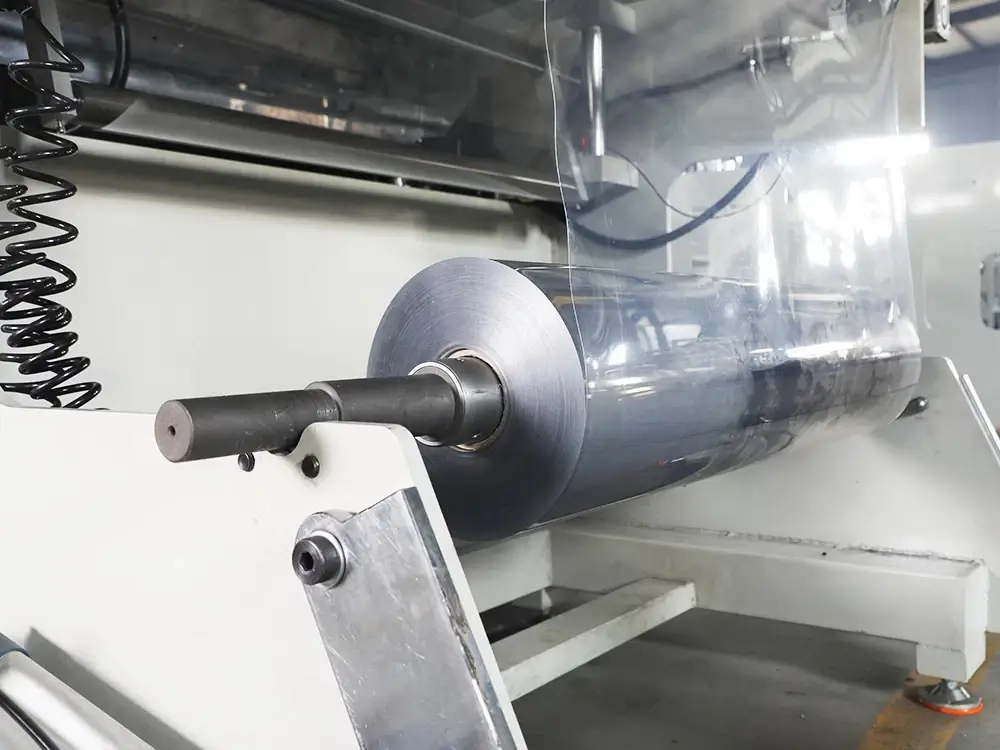

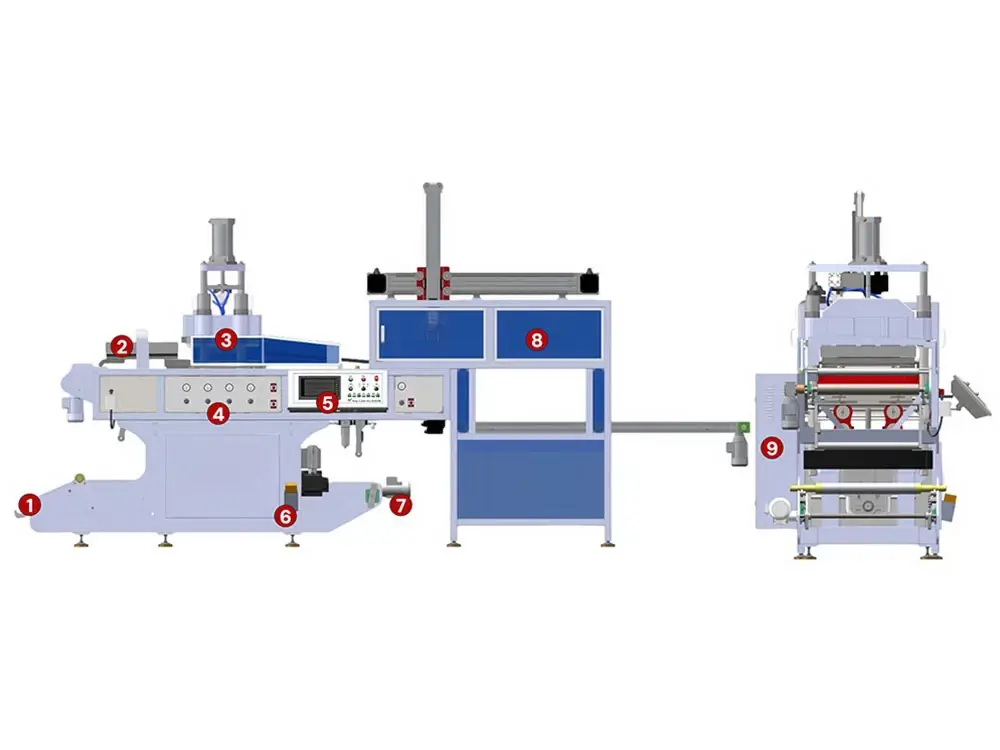

1-Material Roll Holder
2-Pre-Heating Part

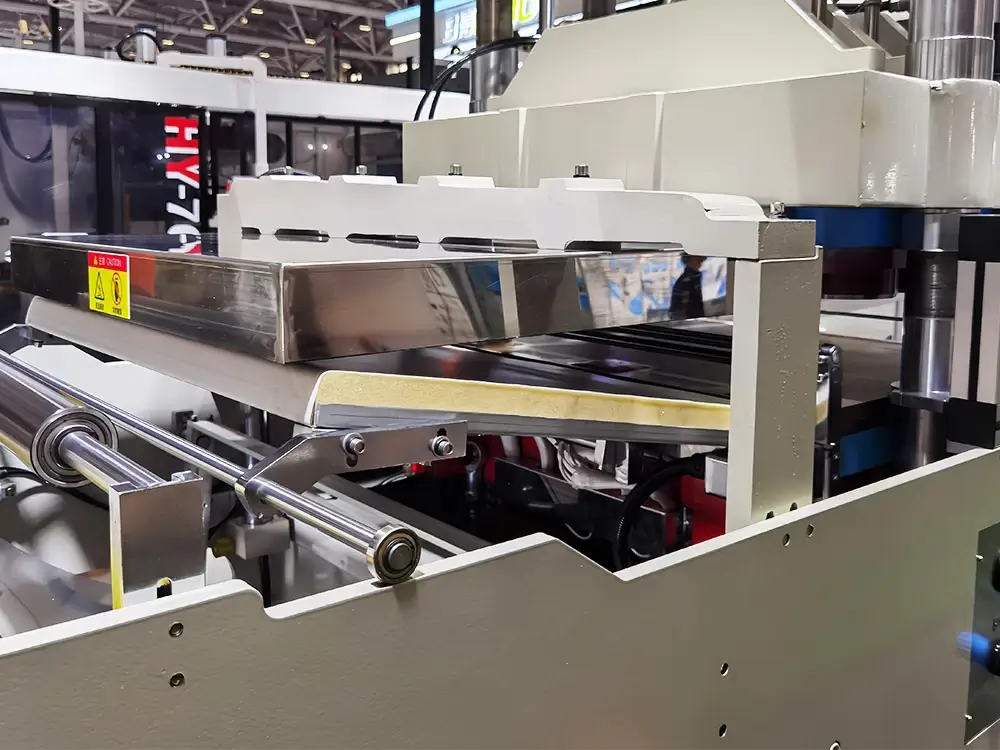

3- Heating-Forming-Cutting Station
4-Pneumatic Control Panel
5-Touch Screen Panel
6-Cold Water Inlet
7-Wasting Sheet Rewinder
8-Auto Stacking Station
9-Electrical Panel Box

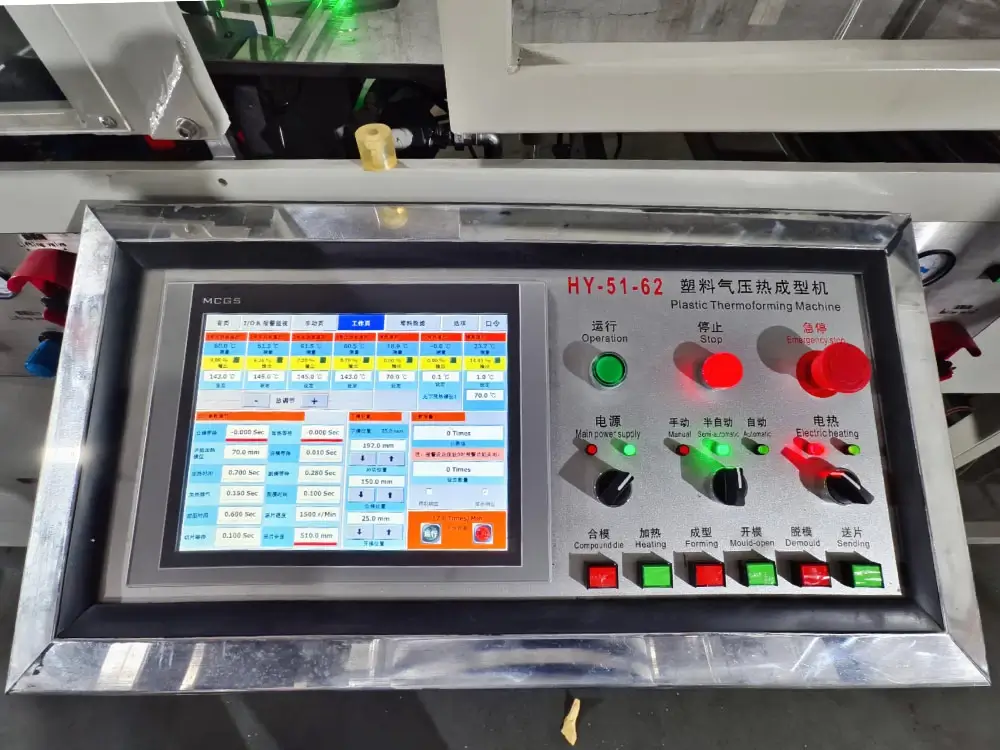

Touchscreen professional operation interface ensures safe and stable system performance.

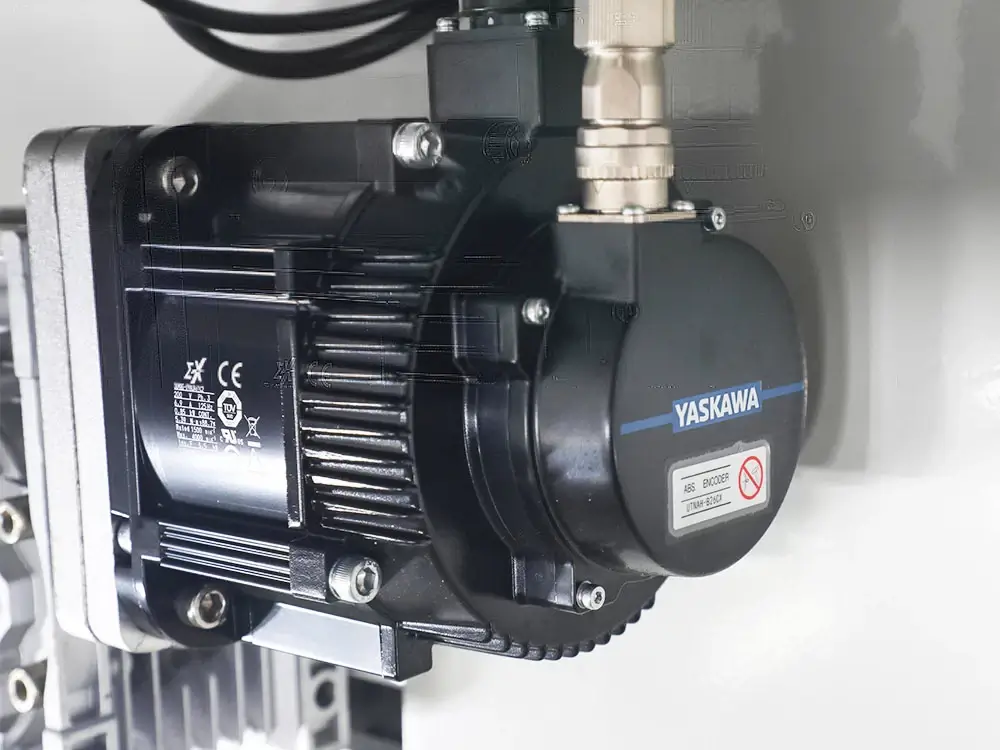

Equipped with Yaskawa (Japan) servo motors for molding, sheet feeding, and stacking robots, running stably and low noise.
Sheets lifted and lowered by air cylinder, feeding driven by servo motor.
Touchscreen professional operation interface ensures safe and stable system performance.

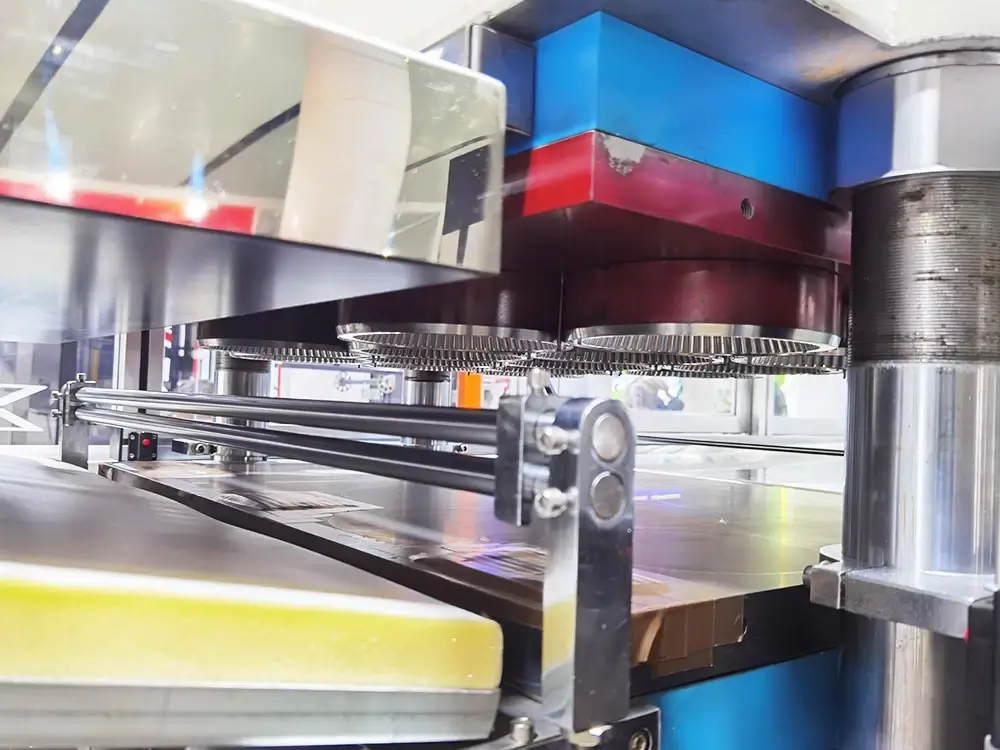

Driven by servo motor (Yaskawa, Japan),heating-forming-cutting in one station;

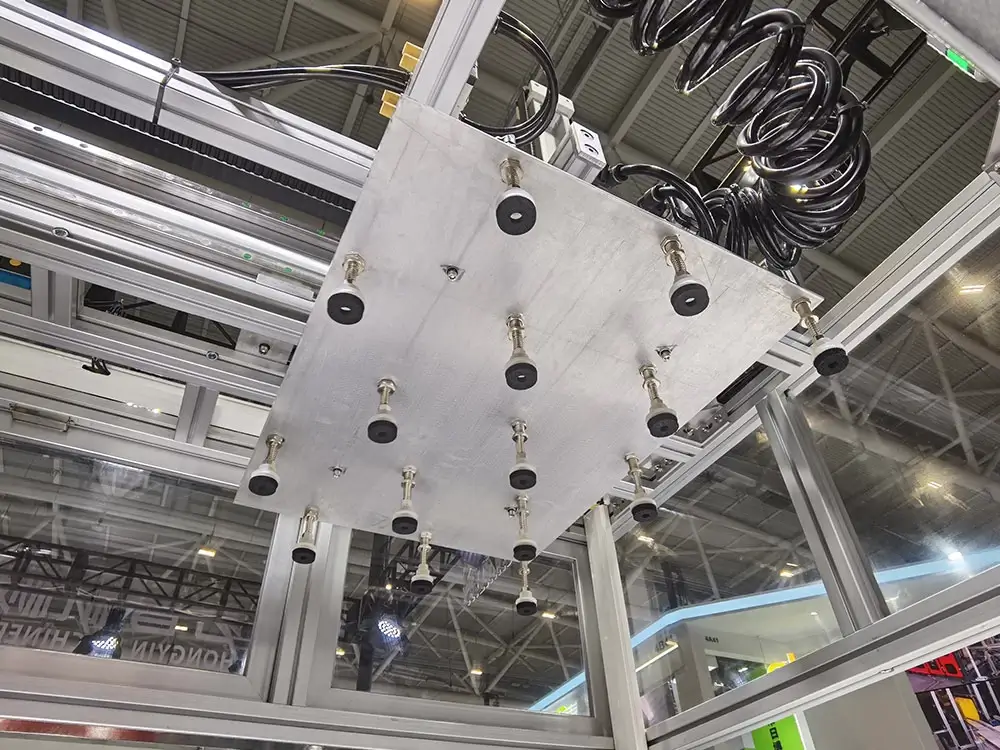

Servo-driven stacking robot (Yaskawa, Japan) Light weight aluminum suction rods for durability and precision

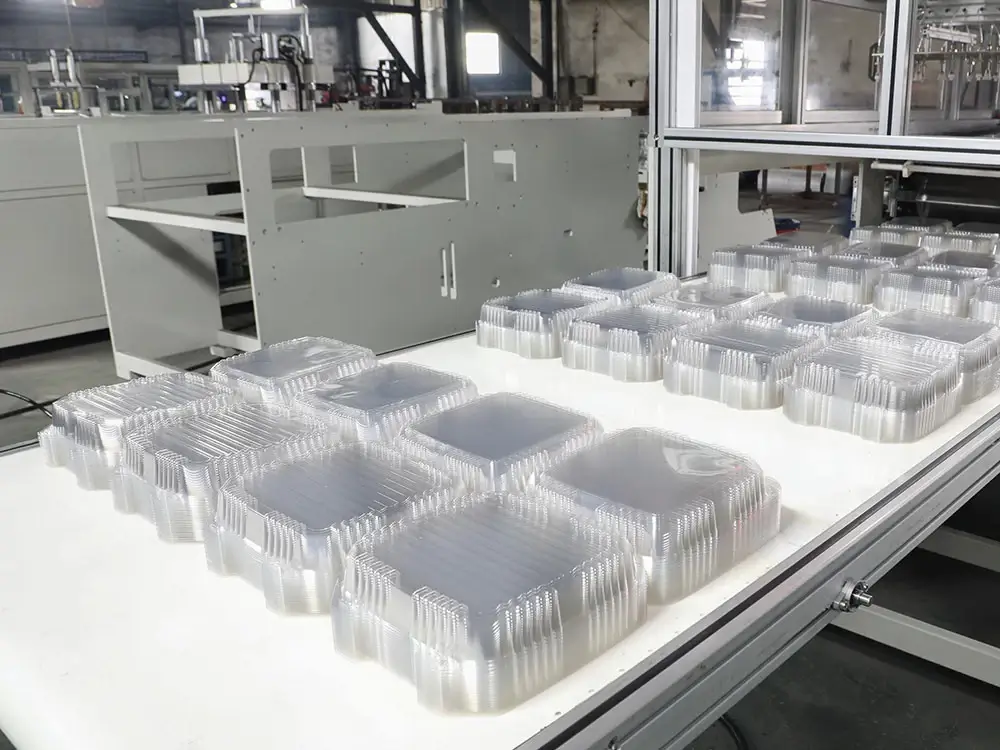

Robot sets the number of stacked layers, and place them on conveyor belt for manual packing.

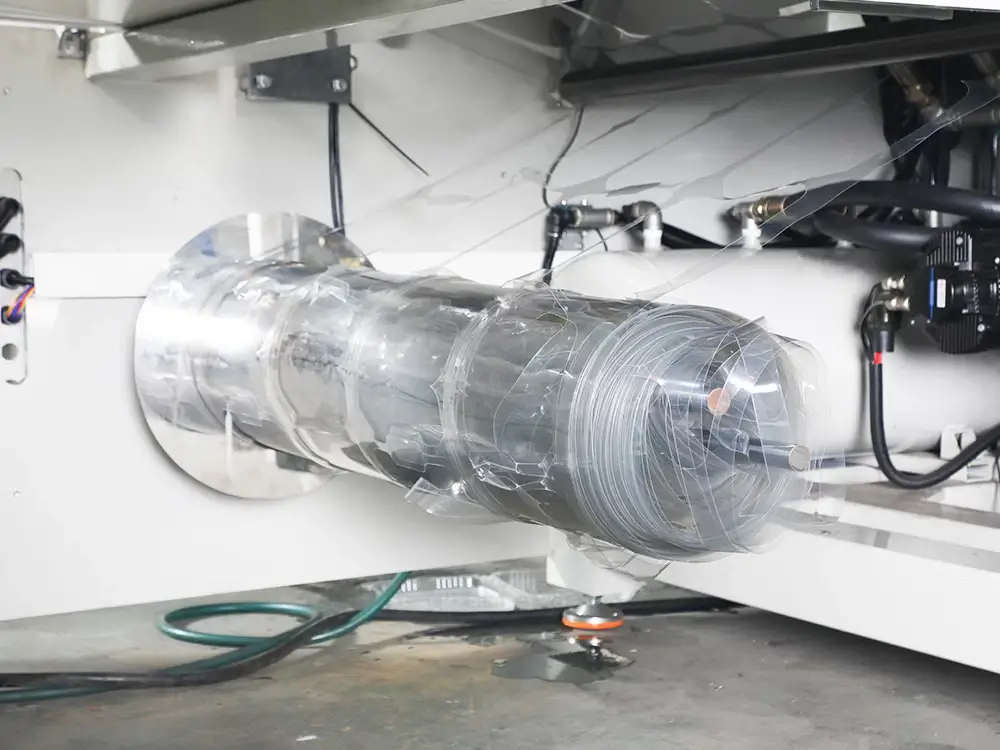

Controlled by Torque motor, automatic rewinder rewinds waste film.

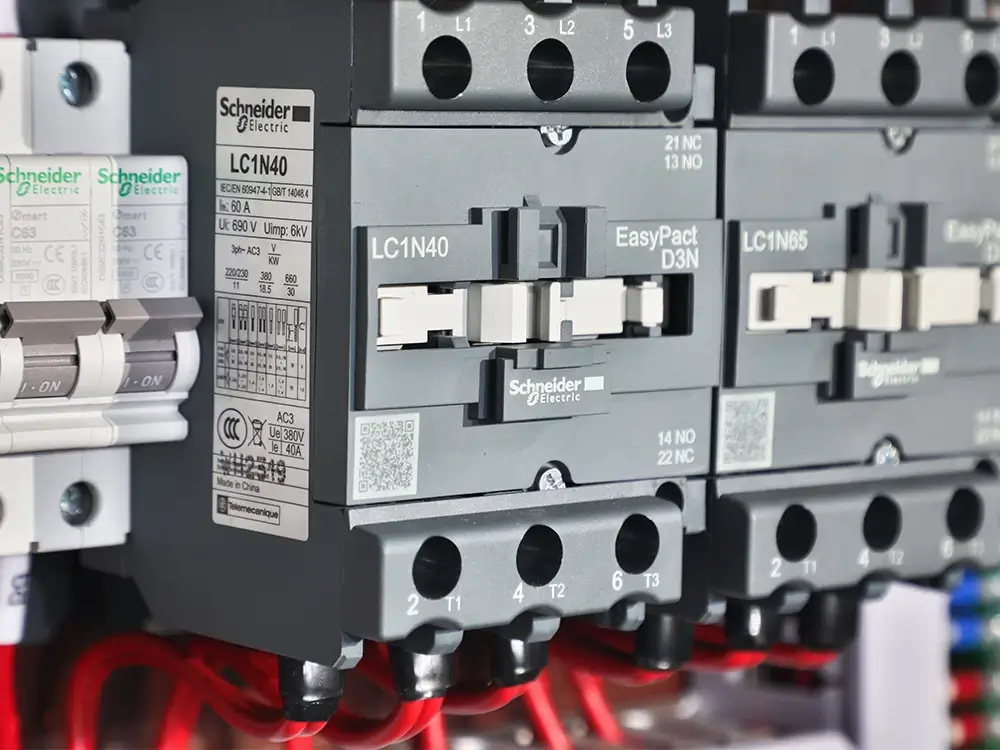

Branded components like Yaskawa (Japan) servo motors and drivers, Panasonic (Japan) PLC, Schneider relays, and Festo valve bodies for reliability
You can get a price of this model or send us any question to get any information you would like to know, we will reply to you soonest.
