（BOPS/PET/PS/PVC）

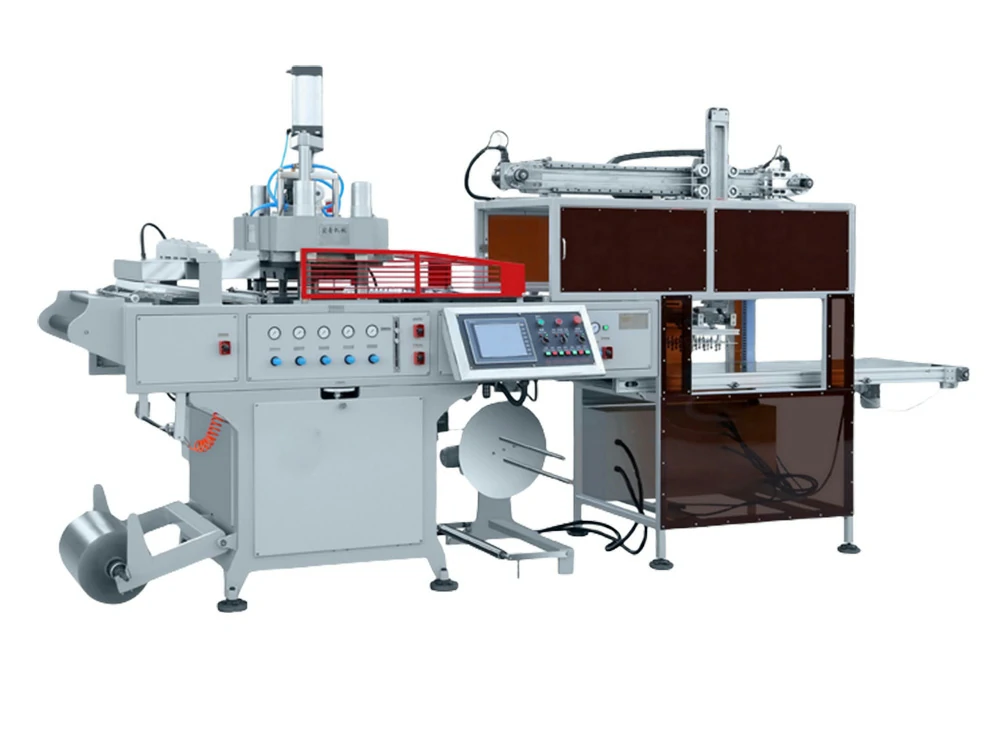

The Machine (Forming Area 510×620mm) combines heating, forming and cutting in one station. It’s specially made for high-transparency thin-wall packaging with BOPS and PET sheets, with key advantages of material saving, energy saving and stable production. It meets the mass production needs of food packaging lids,tray and transparent clamshell boxes, helping enterprises improve production value.
If you have below requests on machine:
Compared with conventional chain feeding, HY-51/62 saves 25% materials and has 94% BOPS and PET utilization.
Traditional ceramic heater consume excessive power and cause over heating of BOPS/PET products.
Traditional multi-station machine is higher unit price, bulky size leading to high shipping & floor space cost, bigger investment and expensive tooling.
Machine model | HY-51/62 |
Forming area | 510×620mm |
Forming depth | 100mm |
Suitable material | BOPS/PET/HIPS/PVC |
Sheet thickness range | 0.10-1mm |
Knife length | PET:6800mm, /OPS:10000mm |
Sheet roller maxi diameter | φ710mm |
Production Speed | 15-22cycles/min |
Approximate power consumption | 7.5kw/hr |
Voltage | 380v,3phase,50hz |
Weight | 3500kg |
Main Machine&Roboter Stacker | 2950×1550×2350mm; 2670×960×2350 mm |
Our HY-51/62 machine can stably process BOPS, PET, HIPS, PVC thermoforming sheets. You can clearly see what you’ll be able to produce after choosing our HY-51/62 by below sample pictures.
OPS features high rigidity and light weight. It uses less material than PET and is easier to mold than PP. It is suitable for food packaging requiring clear display, such as bakery cake clamshell, cookie tray, lids covers and vegetable containers.
PET(APET/R-PET) features high transparency, good low-temperature resistance, non-toxic and odorless, safe for food contact, environmentally friendly and recyclable. It is suitable for packaging container for bakery pastries, fresh food, fruits, vegetables, cold drinks and other products.
HIPS features good toughness, easy processing and low cost, and can be anti-static, suitable for structural support packaging such as electronics, hardware, toys liners and lids covers.
PVC features good flexibility, easy forming, low cost and strong protection, suitable for blister and folding boxes for stationery, toys, hardware, cosmetics and other non-food products.
This video shows the working process of a single-station thermoforming machine，which integrates heating, forming, and punching in one station, plus automatic stacking for higher efficiency, easy operation and stable production capacity.
Japan Yaskawa servos for smooth running with low noise.
Sheet lifting and lowering driven by air cylinder to save labor.
Preheating softens thick sheets for better feeding and forming effect, enhances production capacity.
Heating-forming-cutting in one station for high precision cutting.
Auto stacking robot with lightweight aluminum suction rods reduces manual handling, improves productivity.
Branded parts like Omron,Yaskawa,Chint ensures long-term stable production
Widely sold across India, Russia, Vietnam, Mexico and other markets. Optimized for energy-efficient production of popular cookie trays, paper bowl lids and OPS clamshell boxes. Adopted by food packaging manufacturers including USK, ECO GREEN and KOMOS with field-proven stable performance..
VERY IMPORTANT! After-sales support matters greatly when buying a thermoforming machine.
1. Pre-sales Customized Matching Solution
Offer professional line matching suggestions based on your production demands, product specifications and factory layout, to select the most suitable equipment.
2. In-sales Transparent Progress Follow-up
Confirm detailed equipment drawings and parameters strictly. Update real-time production and assembly progress for full transparency.
3. Strict Pre-delivery Inspection & Acceptance
Complete full equipment debugging and strict quality inspection before shipment, with detailed test records to guarantee qualified factory output and ready-to-run production.
4. Efficient After-sales Technical Support
Provide on-site installation & commissioning services, plus 24/7 online remote support to solve operational problems quickly and minimize downtime loss.
You can get a price of this model or send us any question to get any information you would like to know, we will reply to you soonest.
